Gas Cylinder Cage – Heavy-Duty MS Fabricated
HSN Code: 73089090

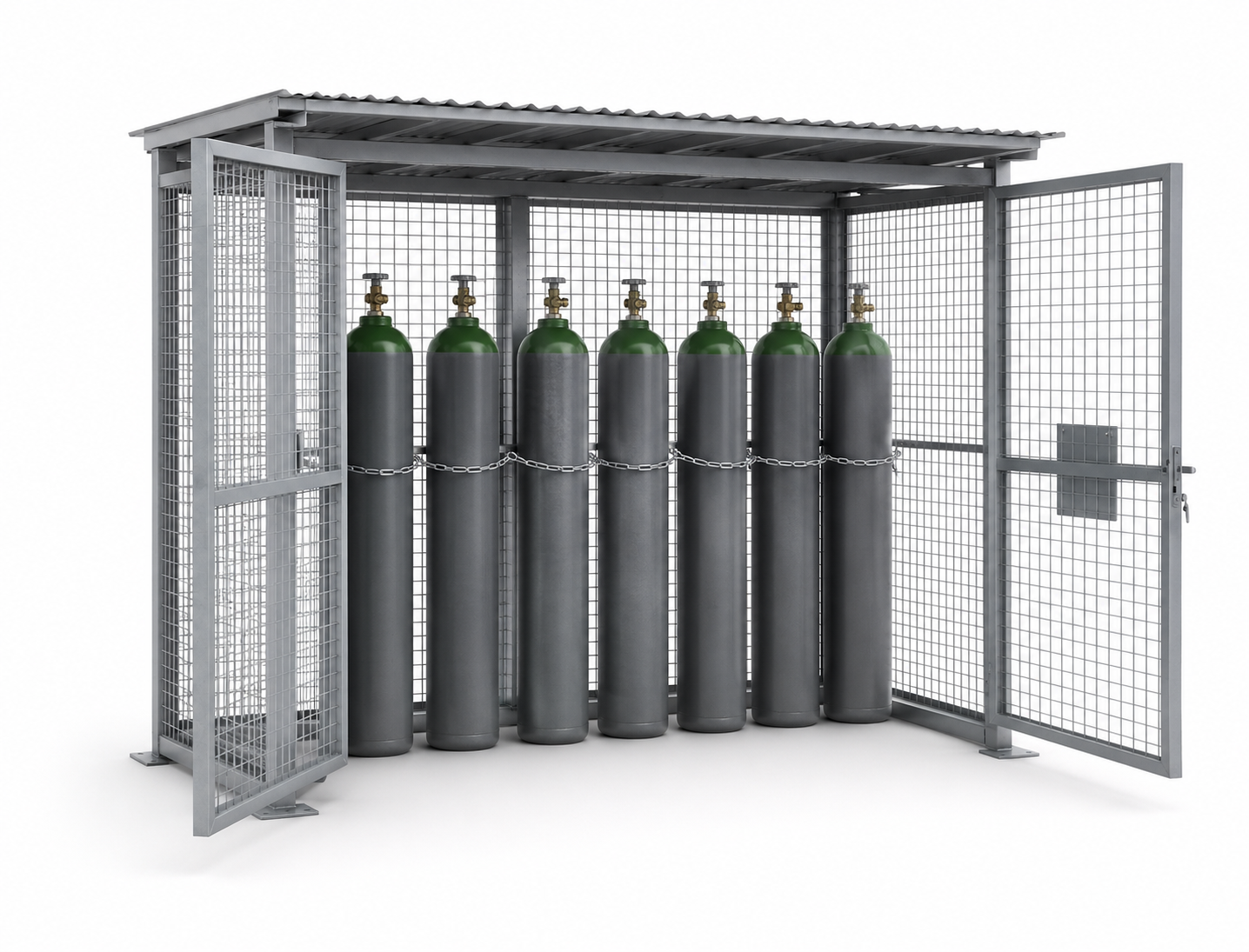

The Chromgate Gas Cylinder Storage Cage is designed for the safe, organized, and secure storage of high-pressure gas cylinders used in laboratories, industrial facilities, gas banks, utility areas, and centralized gas distribution systems.
The cage is fabricated from a robust combination of Mild Steel (MS) angle and square tubular sections and is provided with a FRP / Fibre Sheet or Metal Sheet Top Cover for overhead weather protection. Suitable cylinder-retaining chains/clamps, structural supports, lockable double doors, and floor/wall anchoring arrangements are provided to ensure secure and organized storage of gas cylinders.
The standard configuration is designed to accommodate approximately 8 gas cylinders, or as required, typically of approximately 235 mm diameter × 1500 mm height. Suitable cylinder-retaining chains/clamps, structural supports, anchoring arrangements, and lockable access doors are provided for secure storage.
Technical Specifications:-
- Product Type: Gas Cylinder Storage Cage
- Application: Storage of high-pressure gas cylinders
- Storage Capacity: Approx. 8 Cylinders / Customized as required
- Typical Cylinder Size: Approx. Ø235 mm × 1500 mm Height
- Main Frame MOC: Mild Steel (MS)
- Frame Construction: Heavy-duty MS Angle and Square Tubular Sections
- Fabrication: Cut, fabricated, welded, reinforced, and finished for rigid construction

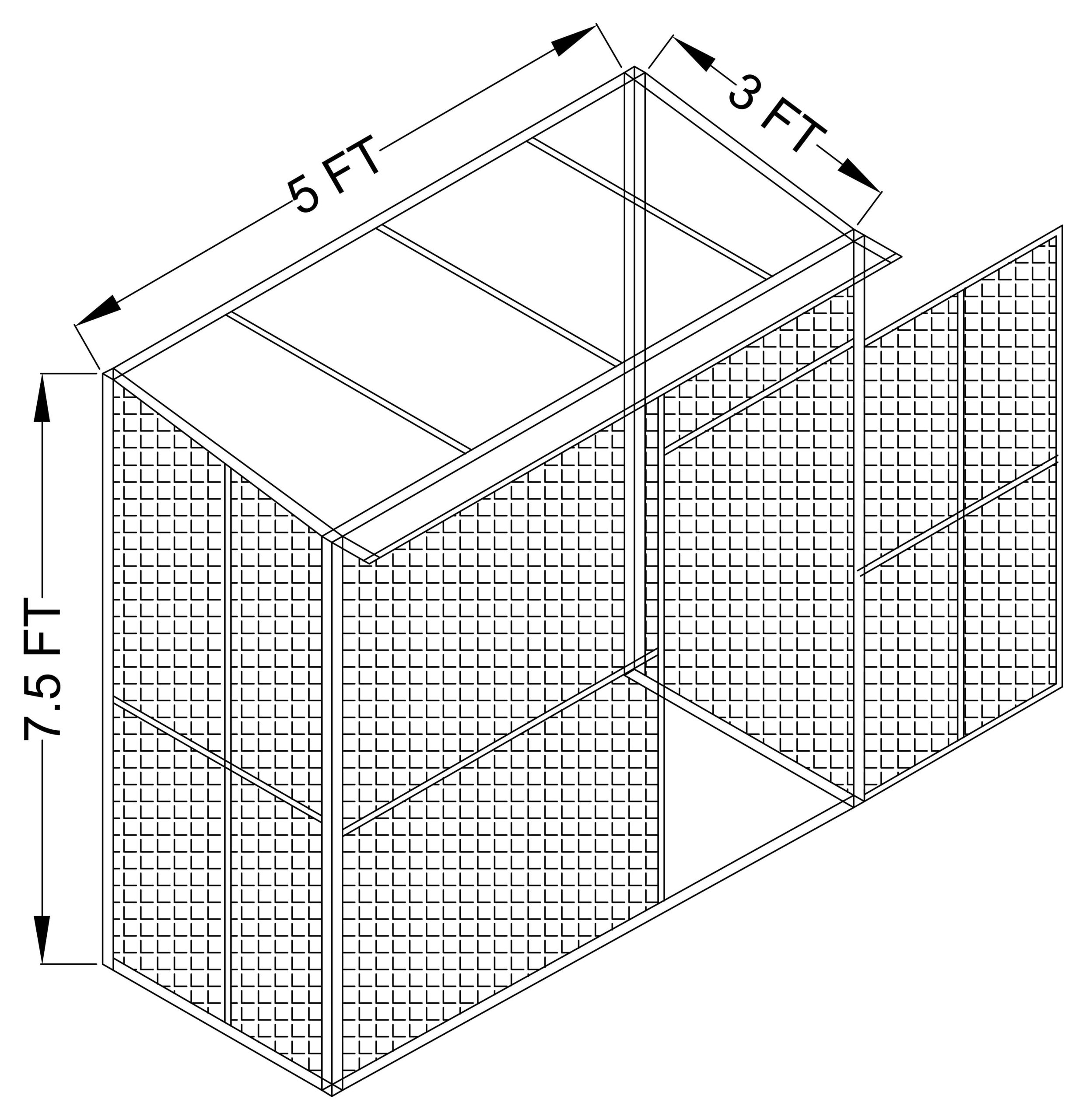

- Cage Dimensions: Customized according to cylinder quantity, cylinder size, available space, and site conditions
- Back-Side Height: Approx. 8 Feet / as required
- Side Configuration: Three-Side Fabricated Enclosure with one existing structural/support wall, where applicable
- Front Access: Single / Double-Door Arrangement / as required
- Door Width: Approx. 2.5 Feet Each / as required
- Door Construction: Heavy-duty fabricated MS frame with suitable open mesh / bar-type construction
- Door Locking: Lockable arrangement with lock and key
- Top Cover / Roof: FRP / Fibre / Metal Sheet Cover, as specified
- Cylinder Holding Arrangement: Individual / grouped retaining chains, clamps, or suitable cylinder restraints, as applicable
- Structural Support: Suitable horizontal and vertical reinforcement members
- Anchoring: Provision for secure floor and/or wall anchoring according to installation requirements
- Surface Preparation: Proper surface cleaning and preparation before coating
- Standard Finish: Anti-corrosive primer followed by suitable finishing paint
- Optional Finish: Powder-coated finish, where specified
- Installation: Floor-mounted / wall-supported, depending on site configuration
- Ventilation: Open-frame / ventilated construction to prevent unnecessary accumulation of gas in the storage enclosure
Safety & Functional Features
* Robust MS fabricated construction
* Designed for organized storage of multiple cylinders
* Suitable restraint arrangement to help prevent cylinders from falling or tipping
* Lockable single / double doors for controlled access
* Open and naturally ventilated construction
* Convenient cylinder inspection and identification
* Suitable floor/wall anchoring for structural stability
* Adequate access for cylinder placement and removal
* Customized to accommodate different cylinder quantities and sizes

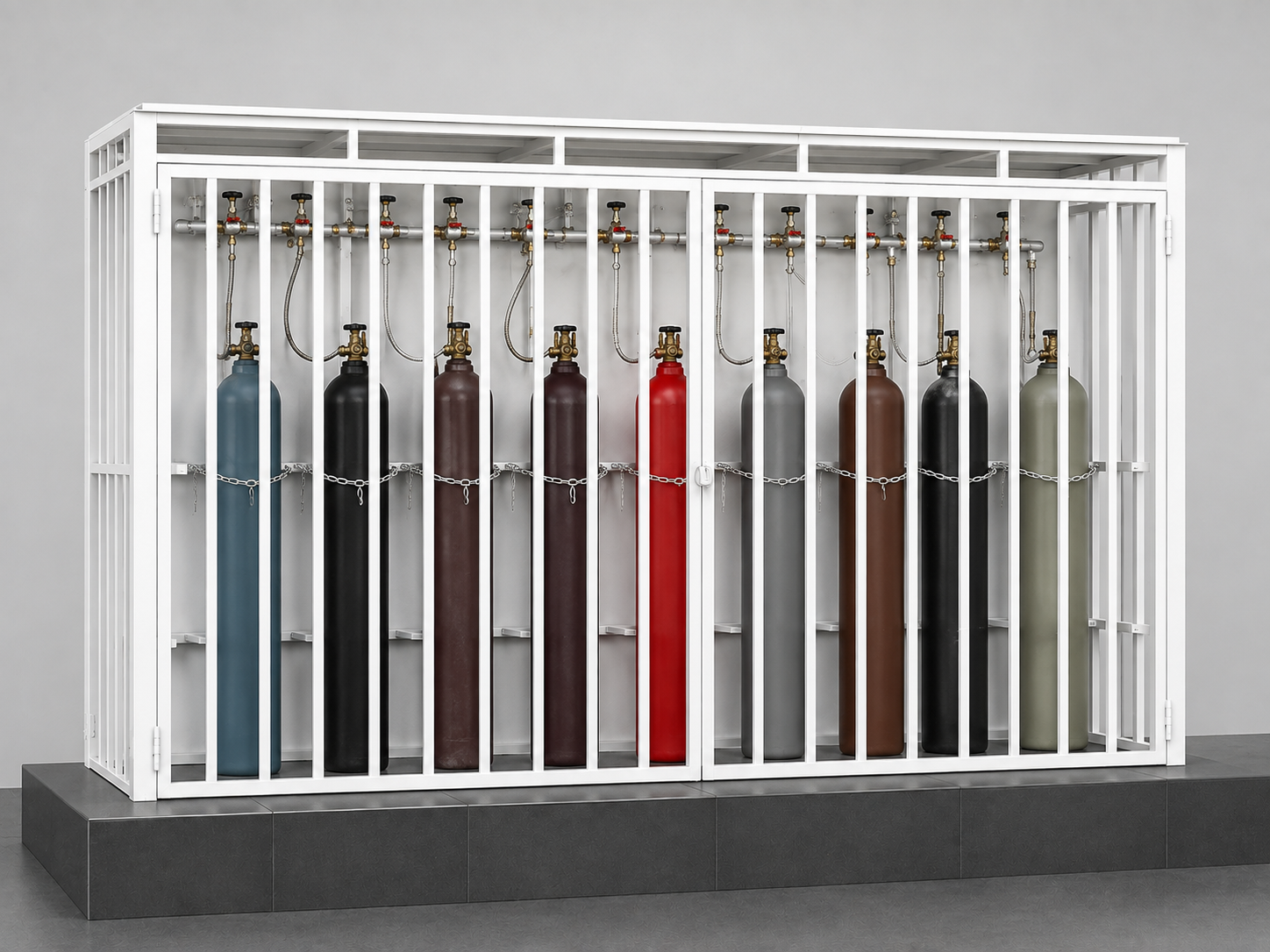

* Suitable for integration with gas manifolds, cylinder regulators, pigtails, changeover systems, and centralized gas distribution systems, where required
Available Customization
The Gas Cylinder Storage Cage can be customized according to:
- Number and size of cylinders
- Single-bank / multiple-bank cylinder arrangement
- Overall cage dimensions
- Door size and configuration
- MS angle / square tubular frame sections
- Cylinder holding chains or clamps
- Manifold mounting arrangement
- Regulator / changeover system mounting provisions
- Gas identification and safety signage
- Floor / wall anchoring arrangement
- Primer & painted / powder-coated finish
- Indoor / outdoor installation requirements
- Weather-protection arrangement, where required
Typical Applications:-
Suitable for laboratories, pharmaceutical facilities, chemical and petrochemical plants, research facilities, QA/QC laboratories, analytical laboratories, industrial gas installations, pilot plants, and centralized gas distribution systems.
Safety Note: Final cage dimensions, cylinder spacing, ventilation, segregation of incompatible gases, restraints, signage, access, anchoring, fire-safety provisions, and installation location should be selected according to the gases stored, cylinder specifications, site conditions, and applicable statutory and safety requirements. For outdoor installations, suitable weather and corrosion protection should be considered.
