Gas Control Box

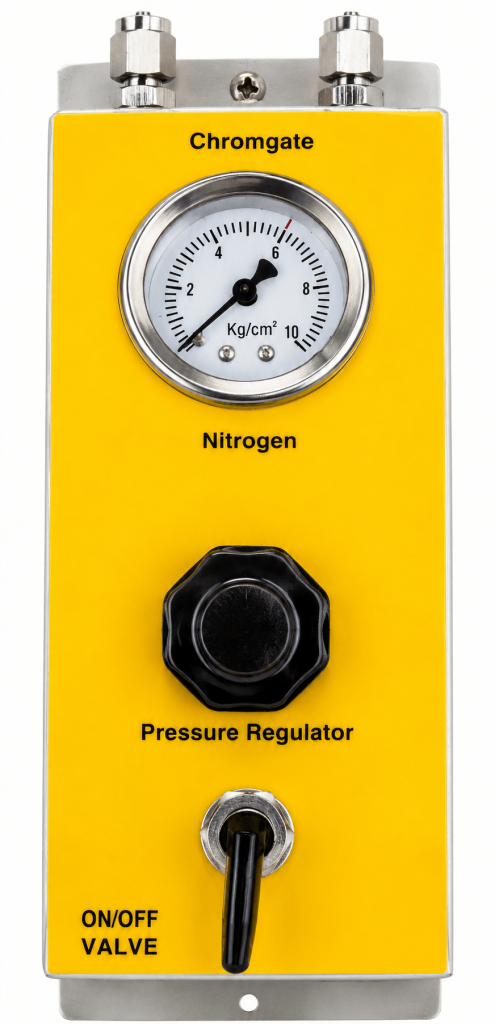

Gas Control Box, Make: Chromgate
Model: CG-GCB-1.8-XX | HSN Code: 84219100

The Chromgate Gas Control Box wall-mounted MS powder-coated enclosure with durable polycarbonate, color-coded labels for easy identification of individual gas streams. It is equipped with pressure gauges, pressure regulators, toggle valves, and associated tubing & fittings to ensure accurate pressure control and safe operation.

Gas Compatibility: Available for use with Nitrogen (N₂), Hydrogen (H₂), Zero Air (ZA), Helium (He), Oxygen (O₂), Argon (Ar), Carbon Dioxide (CO₂), Acetylene (C₂H₂), Nitrous Oxide (N₂O), Ammonia (NH₃) and other laboratory and industrial gases.

Available Models
  • Model: CG-GCB-1.8-01 — Single Gas Line
  • Model: CG-GCB-1.8-02 — Two Gas Lines
  • Model: CG-GCB-1.8-03 — Three Gas Lines
  • Model: CG-GCB-1.8-04 — Four Gas Lines

Standard Features:-

  • Enclosure: MS powder-coated body
  • Gas Identification: Polycarbonate color-coded labels for specific gas streams
  • Inlet & Outlet Connections: 1/8″
  • Pressure Gauge: 0–10 kg/cm²
  • Pressure Regulator: Adjustable Pressure Regulator with a “Press-to-Lock” Knob
  • Isolation Valve: 1/8″ On/Off Toggle Valve

Application: Designed to regulate and control purified gases from the gas purification system to laboratory and analytical instruments, ensuring a stable and reliable gas supply.

Gas Control Box, Make: Chromgate
Model: GC-GCB-1.4-XX | HSN Code: 84219100

The Chromgate Gas Control Box wall-mounted MS powder-coated enclosure with durable polycarbonate, color-coded labels for easy identification of individual gas streams. It is equipped with pressure gauges, pressure regulators, and ball valves, and associated tubing & fittings to ensure accurate pressure control and safe operation.

Gas Compatibility: Available for use with Nitrogen (N₂), Hydrogen (H₂), Zero Air (ZA), Helium (He), Oxygen (O₂), Argon (Ar), Carbon Dioxide (CO₂), Acetylene (C₂H₂), Nitrous Oxide (N₂O), Ammonia (NH₃) and other laboratory and industrial gases.

Available Models
  • Model: CG-GCB-1.4-01 — Single Gas Line
  • Model: CG-GCB-1.4-02 — Two Gas Lines
  • Model: CG-GCB-1.4-03 — Three Gas Lines
  • Model: CG-GCB-1.4-04 — Four Gas Lines

Standard Features:-

  • Enclosure: MS powder-coated body
  • Gas Identification: Polycarbonate color-coded labels for specific gas streams
  • Inlet & Outlet Connections: 1/4″
  • Internal Tubing: 1/4″ OD, SS 316
  • Pressure Gauge: 0–10 kg/cm²
  • Pressure Regulator: Adjustable Pressure Regulator with a “Press-to-Lock” Knob
  • Isolation Valve: 1/4″ On/Off Ball Valve

Application: Designed to regulate and control purified gases from the gas purification system to laboratory and analytical instruments, ensuring a stable and reliable gas supply.
