SS Braided Flexible Hose (Pigtail)
HSN Code: 83071000

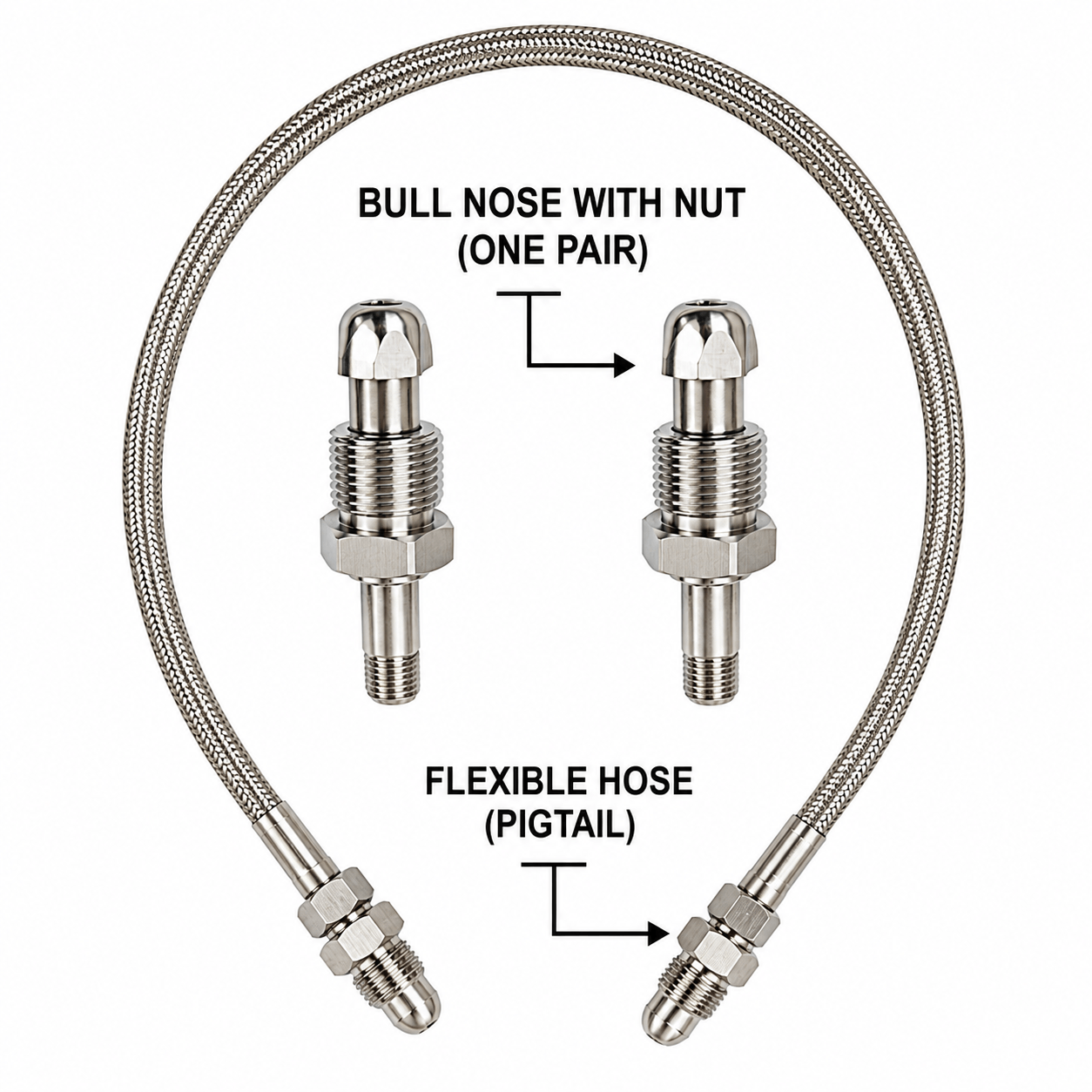

The Chromgate SS Braided Flexible Hose (Pigtail) is designed for safe and reliable connection between a high-pressure gas cylinder and manifold system. It is constructed with a flexible hose and stainless-steel braided reinforcement to provide high mechanical strength, flexibility, and resistance to pressure and environmental conditions. The assembly is supplied complete with a suitable Bull Nose Cylinder Connection and Safety Rope (Optional) for secure installation.
Gas Compatibility: Available for use with Nitrogen (N₂), Hydrogen (H₂), Zero Air (ZA), Helium (He), Oxygen (O₂), Argon (Ar), Carbon Dioxide (CO₂), Acetylene (C₂H₂), Nitrous Oxide (N₂O), Ammonia (NH₃) and other laboratory and industrial gases.
Standard Features & Specifications:-
- Product Type: High-Pressure SS Braided Flexible Hose / Pigtail
- Overall Length: 1 Meter
- Hose Construction: Flexible hose with stainless-steel braided outer reinforcement
- Cylinder Connection: Bull Nose type connection suitable for the specified gas cylinder valve

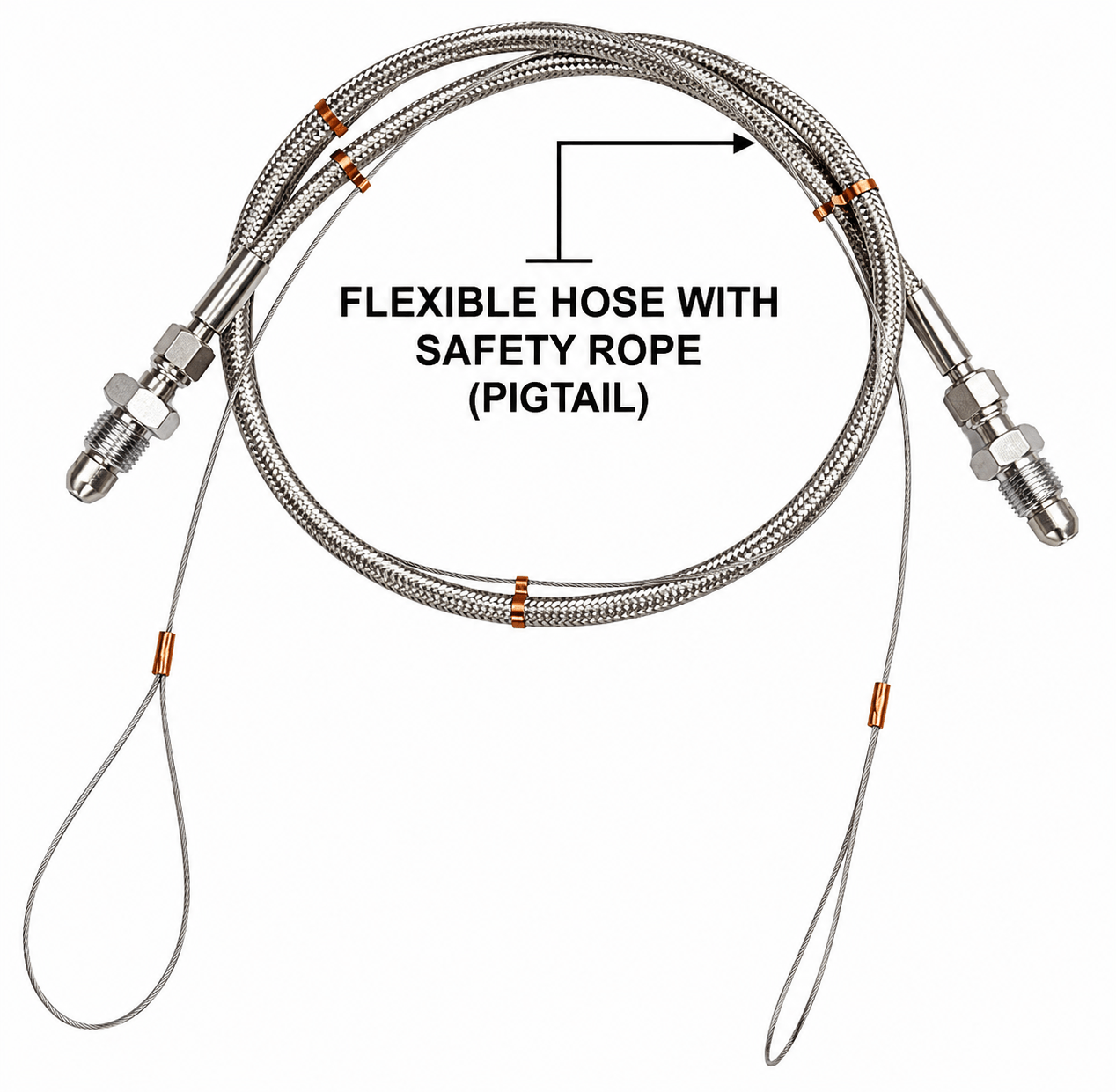

- Safety Rope (Optional): Heavy-duty safety rope/cable provided to secure the pigtail and prevent excessive movement or accidental whip in the event of hose failure or disconnection
- End Fittings: Robust metal end fittings, properly crimped/swaged to the hose assembly for secure and leak-resistant connection
- Leak Tightness: Factory-tested assembly for leak-free performance under the specified operating conditions
Application: Suitable for connecting gas cylinders to manifold system.
Customization: Available with different lengths, Bull Nose configurations, inlet/outlet thread sizes, connection types as per customer requirements
