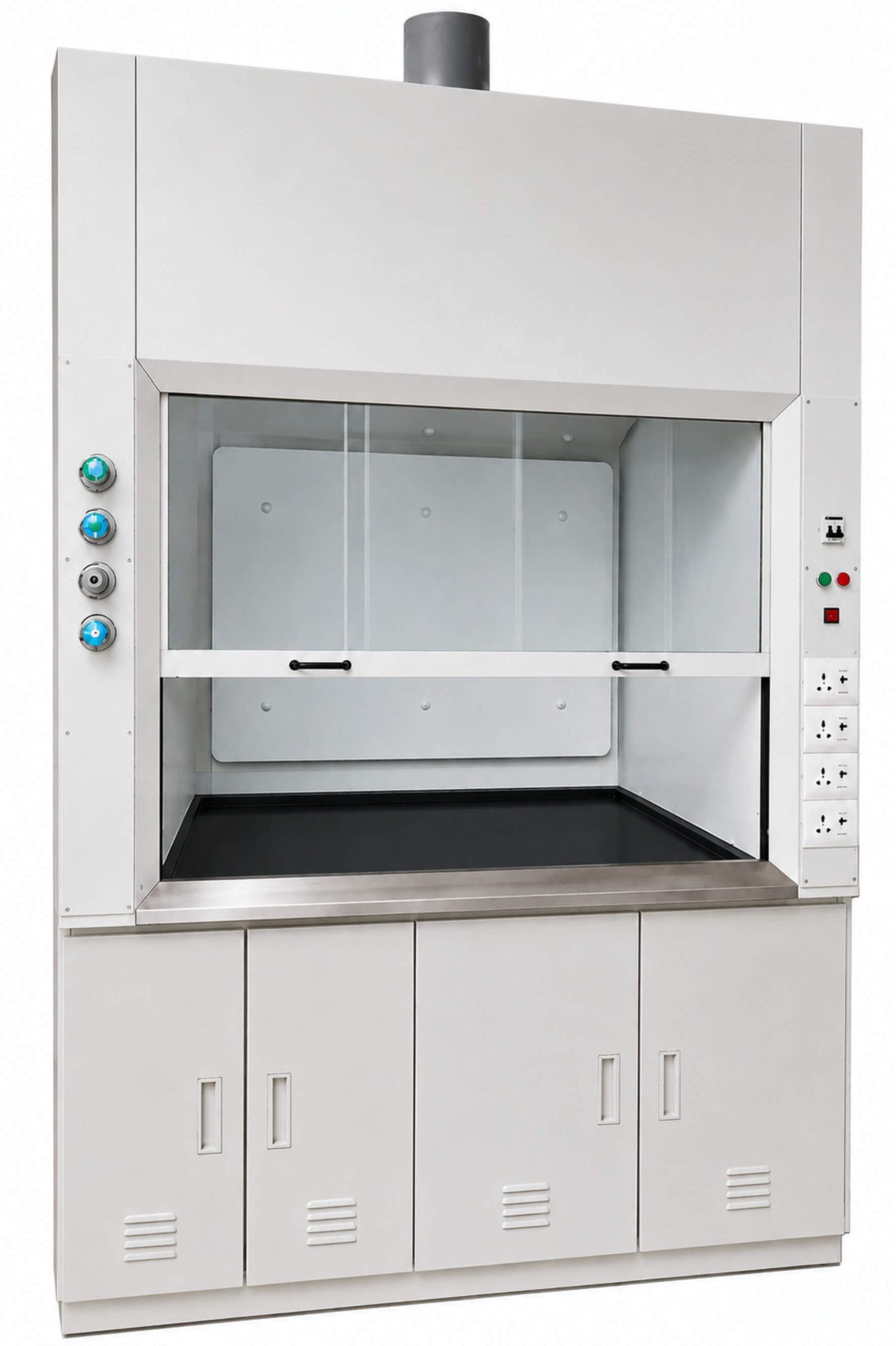

Bench Mounted Laboratory Fume Hood
HSN Code: 841490
The Chromgate Bench Mounted Laboratory Fume Hood is a general-purpose containment enclosure designed to capture, contain, and exhaust hazardous fumes, vapours, gases, and airborne contaminants generated during laboratory procedures.
Installed directly over a laboratory bench or dedicated base cabinet, the hood provides an enclosed working chamber while allowing convenient access to experiments, apparatus, and laboratory utilities. The exhaust system maintains negative pressure within the work chamber, drawing contaminated air away from the operator and conveying it through the connected exhaust system.
The base section can incorporate modular storage cabinets and utility services according to laboratory requirements.
Available Standard Size
♦ L-1200 x D-950 x H-2300 mm
♦ L-1500 x D-950 x H-2300 mm
♦ L-1800 x D-950 x H-2300 mm
♦ L-2100 x D-950 x H-2300 mm
Key Features:-
- Bench-mounted containment enclosure
- Aerodynamically designed work chamber
- Controlled negative-pressure operation
- Vertical / horizontal / combination sash options
- Toughened glass sash for visibility and operator protection
- Suitable chemical-resistant inner lining and worktop
- Provision for water, gas, electrical, drainage, and other utilities
- Optional airflow monitor and low-airflow alarm
- Suitable internal lighting arrangement
- Connection to dedicated centrifugal exhaust blower and ducting
- Provision for integration with a Wet / Dry Scrubber System, where required
- Under-bench storage cabinets available
- Standard and customized dimensions
Typical Applications
Suitable for routine chemical handling, sample preparation, acid/solvent handling where compatible with the selected hood materials, digestion processes, laboratory reactions, and general chemical procedures requiring localized containment.
Note: Hood configuration, face velocity, exhaust volume, MOC, ducting, blower, and treatment system should be selected according to the chemicals handled, process hazards, and applicable laboratory safety requirements.
