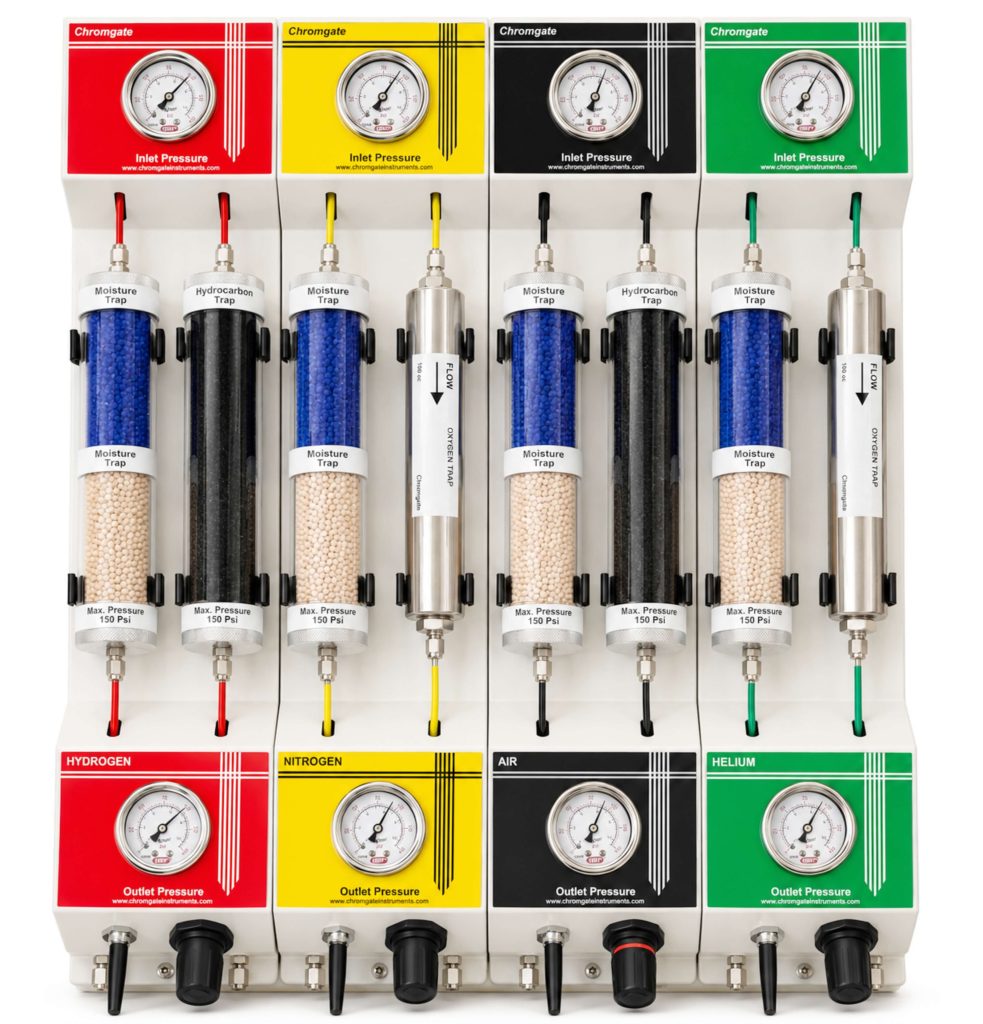

Gas Handling, Purification & Control Systems, Make: Chromgate
Model: CG-GPCS-1.8-XX | HSN Code: 84219100

The Chromgate Gas Purification System features a wall-mounted MS powder-coated enclosure with durable polycarbonate, color-coded labels for easy identification of individual gas lines. The system incorporates high-efficiency purification filters, including moisture traps, hydrocarbon traps, and oxygen traps (oxytraps), along with inlet and outlet pressure gauges, precision pressure regulators, toggle valves, and associated tubing & fittings to ensure safe, reliable, and efficient operation.

Application: Designed for purification, pressure regulation, monitoring, and controlled delivery of gases for laboratory and analytical applications.

Available Models
  • Model: CG-GPCS-1.8-01 — Single Gas Line
  • Model: CG-GPCS-1.8-02 — Two Gas Lines
  • Model: CG-GPCS-1.8-03 — Three Gas Lines
  • Model: CG-GPCS-1.8-04 — Four Gas Lines

Note: Gas-line combinations and purification configurations can be customized according to the gas type, analytical instrument, required pressure, and application.

Purification Performance
Designed to reduce moisture, hydrocarbons, oxygen, CO₂, organic and inorganic impurities, and particulate contaminants to trace levels, depending on the type and configuration of purification media used. The purification traps help provide a clean, high-purity gas stream for sensitive laboratory and analytical applications.

The regenerable Oxygen Trap (Oxytrap) is specifically designed to remove and reduce trace oxygen from compatible carrier and inert gases such as Nitrogen and Helium, helping maintain the gas purity required for sensitive analytical applications.

Note: Purification efficiency and achievable outlet purity depend on the inlet gas quality, contaminant concentration, gas type, flow rate, operating pressure and temperature, purification media capacity, and service condition of the individual traps.

Nitrogen / Helium Gas Line – Technical Specifications

  • Inlet and Outlet Connections: 1/8″ or 1/4″
  • Gas Purification Filters: Moisture Trap, and Oxygen Trap
  • Moisture Trap: Filled with Molecular Sieve 13X and Indicating Blue Silica Gel
  • Moisture Trap Length: Approx. 11″, end-to-end
  • Oxygen Trap (Oxytrap): Filled with Chemically Treated Catalyst 100 cc
  • Oxygen Trap (Oxytrap) Length: Approx. 10″, end-to-end
  • Inlet and Outlet Pressure Gauges: 0–10 kg/cm²
  • Pressure Regulator: Adjustable Pressure Regulator with a “Press-to-Lock” Knob
  • Outlet Isolation Valve: 1/8″ On/Off Toggle Valve

Hydrogen / Zero Air Gas Line – Technical Specifications

  • Inlet and Outlet Connections: 1/8″ or 1/4″
  • Gas Purification Filters: Moisture Trap, and Hydrocarbon Trap
  • Moisture Trap: Filled with Molecular Sieve 13X and Indicating Blue Silica Gel
  • Moisture Trap Length: Approx. 11″, end-to-end
  • Hydrocarbon Trap: Filled with Activated Carbon
  • Hydrocarbon Trap Length: Approx. 11″, end-to-end
  • Inlet and Outlet Pressure Gauges: 0–10 kg/cm²
  • Pressure Regulator: Adjustable Pressure Regulator with a “Press-to-Lock” Knob
  • Outlet Isolation Valve: 1/8″ On/Off Toggle Valve

Argon Gas Line – Technical Specifications

  • Inlet and Outlet Connections: 1/8″ or 1/4″
  • Gas Purification Filters: Moisture Trap – 02 Nos.
  • Moisture Trap: Filled with Molecular Sieve 13X and Indicating Blue Silica Gel
  • Moisture Trap Length: Approx. 11″ each, end-to-end
  • Inlet and Outlet Pressure Gauges: 0–10 kg/cm²
  • Pressure Regulator: Adjustable Pressure Regulator with a “Press-to-Lock” Knob
  • Outlet Isolation Valve: 1/8″ On/Off Toggle Valve
Gas Compatibility
Available for use with Nitrogen (N₂), Hydrogen (H₂), Zero Air (ZA), Helium (He), Oxygen (O₂), Argon (Ar), Carbon Dioxide (CO₂), Acetylene (C₂H₂), Nitrous Oxide (N₂O), Ammonia (NH₃) and other laboratory and industrial gases.

CHROMGATE-Product Catalogue-2026

CHROMGATE-Product Catalogue-2026

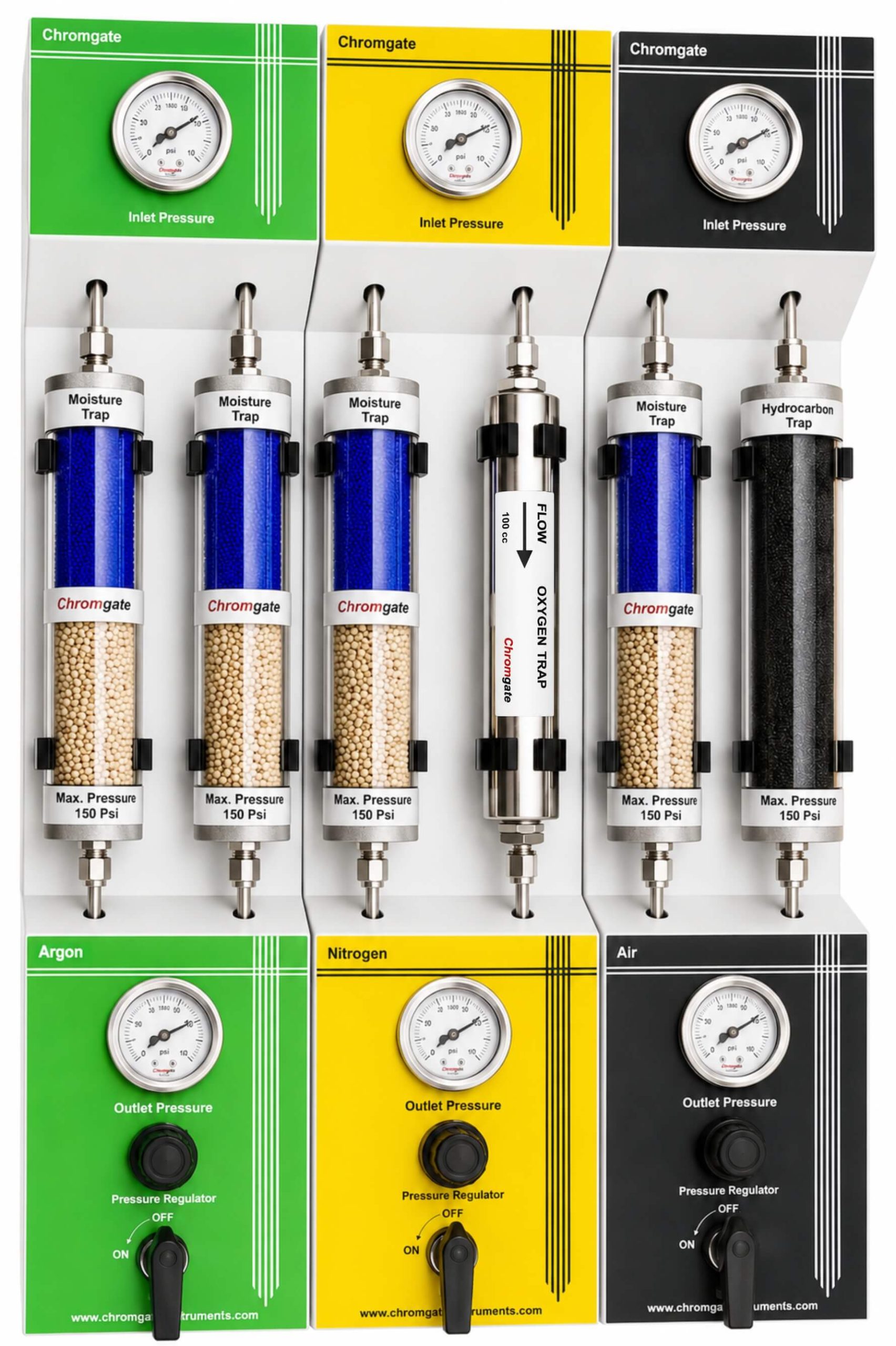

Gas Handling, Purification & Control Systems, Make: Chromgate
Model: CG-GPCS-1.4-XX | HSN Code: 84219100

The Chromgate Gas Purification System features a wall-mounted MS powder-coated enclosure with durable polycarbonate, color-coded labels for easy identification of individual gas lines. The system incorporates high-efficiency purification filters, including moisture traps, hydrocarbon traps, and oxygen traps (oxytraps), along with inlet and outlet pressure gauges, precision pressure regulators, ball valves, and associated tubing & fittings to ensure safe, reliable, and efficient operation.

Application: Designed for purification, pressure regulation, monitoring, and controlled delivery of gases for laboratory and analytical applications.

Available Models
  • Model: CG-GPCS-1.4-01 — Single Gas Line
  • Model: CG-GPCS-1.4-02 — Two Gas Lines
  • Model: CG-GPCS-1.4-03 — Three Gas Lines
  • Model: CG-GPCS-1.4-04 — Four Gas Lines

Note: Gas-line combinations and purification configurations can be customized according to the gas type, analytical instrument, required pressure, and application.

Purification Performance
Designed to reduce moisture, hydrocarbons, oxygen, CO₂, organic and inorganic impurities, and particulate contaminants to trace levels, depending on the type and configuration of purification media used. The purification traps help provide a clean, high-purity gas stream for sensitive laboratory and analytical applications.

The regenerable Oxygen Trap (Oxytrap) is specifically designed to remove and reduce trace oxygen from compatible carrier and inert gases such as Nitrogen and Helium, helping maintain the gas purity required for sensitive analytical applications.

Note: Purification efficiency and achievable outlet purity depend on the inlet gas quality, contaminant concentration, gas type, flow rate, operating pressure and temperature, purification media capacity, and service condition of the individual traps.

Nitrogen / Helium Gas Line – Technical Specifications

  • Inlet and Outlet Connections: 1/4″
  • Internal Tubing: 1/4″ OD, SS 316
  • Gas Purification Filters: Moisture Trap, and Oxygen Trap
  • Moisture Trap: Filled with Molecular Sieve 13X and Indicating Blue Silica Gel
  • Moisture Trap Length: Approx. 11″, end-to-end
  • Oxygen Trap (Oxytrap): Filled with Chemically Treated Catalyst 100 cc
  • Oxygen Trap (Oxytrap) Length: Approx. 10″, end-to-end
  • Inlet and Outlet Pressure Gauges: 0–10 kg/cm²
  • Pressure Regulator: Adjustable Pressure Regulator with a “Press-to-Lock” Knob
  • Outlet Isolation Valve: 1/4″ On/Off Ball Valve

Hydrogen / Zero Air Gas Line – Technical Specifications

  • Inlet and Outlet Connections: 1/4″
  • Internal Tubing: 1/4″ OD, SS 316
  • Gas Purification Filters: Moisture Trap, and Hydrocarbon Trap
  • Moisture Trap: Filled with Molecular Sieve 13X and Indicating Blue Silica Gel
  • Moisture Trap Length: Approx. 11″, end-to-end
  • Hydrocarbon Trap: Filled with Activated Carbon
  • Hydrocarbon Trap Length: Approx. 11″, end-to-end
  • Inlet and Outlet Pressure Gauges: 0–10 kg/cm²
  • Pressure Regulator: Adjustable Pressure Regulator with a “Press-to-Lock” Knob
  • Outlet Isolation Valve: 1/4″ On/Off Ball Valve

Argon Gas Line – Technical Specifications

  • Inlet and Outlet Connections: 1/4″
  • Internal Tubing: 1/4″ OD, SS 316
  • Gas Purification Filters: Moisture Trap – 02 Nos.
  • Moisture Trap: Filled with Molecular Sieve 13X and Indicating Blue Silica Gel
  • Moisture Trap Length: Approx. 11″ each, end-to-end
  • Inlet and Outlet Pressure Gauges: 0–10 kg/cm²
  • Pressure Regulator: Adjustable Pressure Regulator with a “Press-to-Lock” Knob
  • Outlet Isolation Valve: 1/4″ On/Off Ball Valve
Gas Compatibility
Available for use with Nitrogen (N₂), Hydrogen (H₂), Zero Air (ZA), Helium (He), Oxygen (O₂), Argon (Ar), Carbon Dioxide (CO₂), Acetylene (C₂H₂), Nitrous Oxide (N₂O), Ammonia (NH₃) and other laboratory and industrial gases.

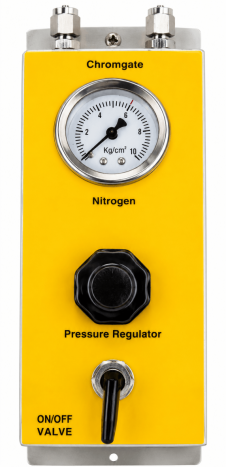

Gas Control Box, Make: Chromgate
Model: CG-GCB-1.8-XX | HSN Code: 84219100

The Chromgate Gas Control Box wall-mounted MS powder-coated enclosure with durable polycarbonate, color-coded labels for easy identification of individual gas streams. It is equipped with pressure gauges, pressure regulators, toggle valves, and associated tubing & fittings to ensure accurate pressure control and safe operation.

Gas Compatibility: Available for use with Nitrogen (N₂), Hydrogen (H₂), Zero Air (ZA), Helium (He), Oxygen (O₂), Argon (Ar), Carbon Dioxide (CO₂), Acetylene (C₂H₂), Nitrous Oxide (N₂O), Ammonia (NH₃) and other laboratory and industrial gases.

Available Models
  • Model: CG-GCB-1.8-01 — Single Gas Line
  • Model: CG-GCB-1.8-02 — Two Gas Lines
  • Model: CG-GCB-1.8-03 — Three Gas Lines
  • Model: CG-GCB-1.8-04 — Four Gas Lines

Standard Features:-

  • Enclosure: MS powder-coated body
  • Gas Identification: Polycarbonate color-coded labels for specific gas streams
  • Inlet & Outlet Connections: 1/8″
  • Pressure Gauge: 0–10 kg/cm²
  • Pressure Regulator: Adjustable Pressure Regulator with a “Press-to-Lock” Knob
  • Isolation Valve: 1/8″ On/Off Toggle Valve

Application: Designed to regulate and control purified gases from the gas purification system to laboratory and analytical instruments, ensuring a stable and reliable gas supply.

CHROMGATE-Product Catalogue-2026

CHROMGATE-Product Catalogue-2026

Gas Control Box, Make: Chromgate
Model: GC-GCB-1.4-XX | HSN Code: 84219100

The Chromgate Gas Control Box wall-mounted MS powder-coated enclosure with durable polycarbonate, color-coded labels for easy identification of individual gas streams. It is equipped with pressure gauges, pressure regulators, and ball valves, and associated tubing & fittings to ensure accurate pressure control and safe operation.

Gas Compatibility: Available for use with Nitrogen (N₂), Hydrogen (H₂), Zero Air (ZA), Helium (He), Oxygen (O₂), Argon (Ar), Carbon Dioxide (CO₂), Acetylene (C₂H₂), Nitrous Oxide (N₂O), Ammonia (NH₃) and other laboratory and industrial gases.

Available Models
  • Model: CG-GCB-1.4-01 — Single Gas Line
  • Model: CG-GCB-1.4-02 — Two Gas Lines
  • Model: CG-GCB-1.4-03 — Three Gas Lines
  • Model: CG-GCB-1.4-04 — Four Gas Lines

Standard Features:-

  • Enclosure: MS powder-coated body
  • Gas Identification: Polycarbonate color-coded labels for specific gas streams
  • Inlet & Outlet Connections: 1/4″
  • Internal Tubing: 1/4″ OD, SS 316
  • Pressure Gauge: 0–10 kg/cm²
  • Pressure Regulator: Adjustable Pressure Regulator with a “Press-to-Lock” Knob
  • Isolation Valve: 1/4″ On/Off Ball Valve

Application: Designed to regulate and control purified gases from the gas purification system to laboratory and analytical instruments, ensuring a stable and reliable gas supply.

On/Off Valve Box (Ministation), Make: Chromgate
Model: CG-MVS-1.8-XX | HSN Code: 84219100

The Chromgate On/Off Valve Box (Ministation) is wall mounted MS powder-coated enclosure with durable polycarbonate, color-coded labels for easy identification of individual gas streams. It is equipped with toggle valves, and associated tubing & fittings to provide smooth operation and dependable gas flow control.

Gas Compatibility: Available for use with Nitrogen (N₂), Hydrogen (H₂), Zero Air (ZA), Helium (He), Oxygen (O₂), Argon (Ar), Carbon Dioxide (CO₂), Acetylene (C₂H₂), Nitrous Oxide (N₂O), Ammonia (NH₃) and other laboratory and industrial gases.

Available Models
  • Model: CG-MVS-1.8-01 — Single Gas Line
  • Model: CG-MVS-1.8-02 — Two Gas Lines
  • Model: CG-MVS-1.8-03 — Three Gas Lines
  • Model: CG-MVS-1.8-04 — Four Gas Lines

Standard Features:-

  • Enclosure: MS powder-coated body
  • Gas Identification: Polycarbonate color-coded labels for specific gas streams
  • Inlet & Outlet Connections: 1/8″
  • Isolation Valve: 1/8″ On/Off Toggle Valve

Application: Designed to isolate and control the flow of purified gases from the gas purification system to laboratory and analytical instruments, ensuring safe, convenient, and reliable gas distribution.

CHROMGATE-Product Catalogue-2026

CHROMGATE-Product Catalogue-2026

Gas Selection Box (Changeover), Make: Chromgate
Model: CG-GSB-1.4-01 | HSN Code: 84219100

The Chromgate Gas Selection Box (Changeover) is wall mounted MS powder-coated enclosure with durable polycarbonate, color-coded labels for easy identification of individual gas streams. It is equipped with pressure gauges, pressure regulators, and a manual changeover valve, allowing users to switch between two gas sources without disconnecting any gas lines, ensuring continuous and safe gas supply.

Available Models
  • Model: CG-GSB-1.4-01 — Single Gas Line

Standard Features:-

  • Enclosure: MS powder-coated body
  • Gas Identification: Polycarbonate color-coded labels for specific gas streams
  • Inlet & Outlet Connections: 1/8″ or 1/4″
  • Configuration: Two inlet connections and one outlet connection
  • Pressure Gauge: 0–10 kg/cm²
  • Pressure Regulator: Adjustable Pressure Regulator with a “Press-to-Lock” Knob
  • Changeover Valve: Manual Changeover Valve with OFF position

Application: Designed to facilitate seamless gas source selection and changeover without disconnecting gas lines, ensuring uninterrupted, safe, and reliable gas supply to laboratory and analytical instruments.

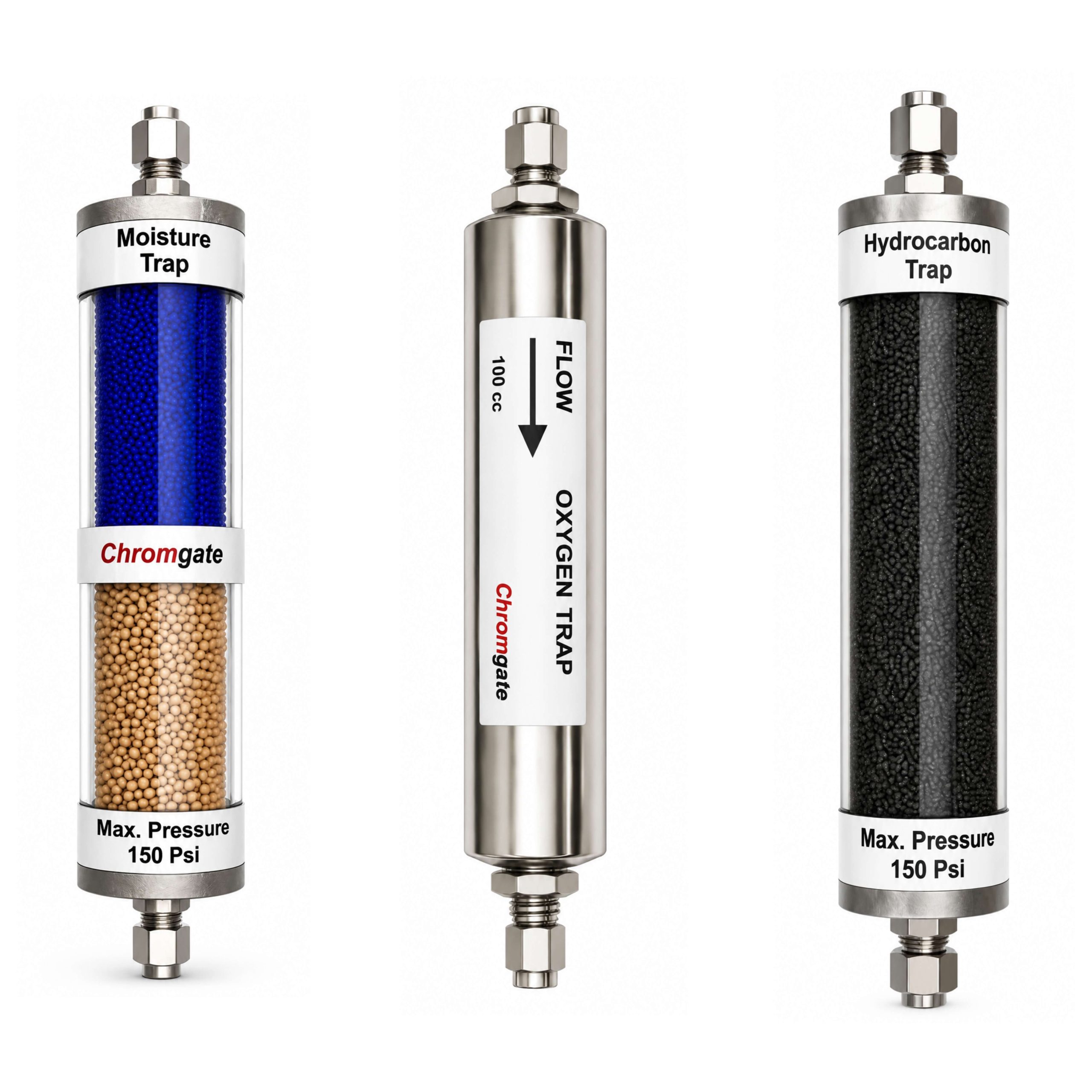

High Purity Gas Purification Traps
HSN Code: 84219100

The Chromgate High-Purity Gas Purification Traps are designed for the purification of laboratory and analytical gas streams by removing specific contaminants such as moisture, hydrocarbons, and oxygen before the gas reaches sensitive analytical instruments.

These in-line purification traps help improve gas quality and protect sensitive components such as GC columns, detectors, valves, regulators, and other gas-line components from contamination. They are particularly suitable for Gas Chromatography (GC), GC-MS, and other analytical applications where high-purity carrier, make-up, and detector gases are required.

The purification traps are available in Moisture Trap, Hydrocarbon Trap, and Oxygen Trap configurations and can be installed individually or as part of a complete gas purification and control system.

1. Moisture Trap – Molecular Sieve 13X & Indicating Blue Silica Gel

The Chromgate Moisture Trap is designed to reduce moisture and water vapour present in compressed gas streams before the gas reaches sensitive analytical instruments.

The filter contains a combination of Molecular Sieve 13X and Indicating Blue Silica Gel, providing effective moisture adsorption and helping maintain a dry gas supply. The silica gel also provides a convenient visual indication of moisture loading where the media is visible.

Technical Specifications:-
Product Type: In-Line Moisture Trap
Filter Media: Molecular Sieve 13X and Indicating Blue Silica Gel
Nominal Filter Length: Approx. 11″, end-to-end
Inlet and Outlet Connections: 1/8″ or 1/4″
Installation: In-Line
Function: Removal / reduction of moisture and water vapour from compatible gas streams
Application: Carrier gas, make-up gas, detector gas, and other analytical gas lines
Gas Compatibility: Suitable for compatible gases according to system requirements
Configuration: Suitable for individual installation or integration into a Gas Purification & Control Panel

2. Hydrocarbon Trap – Activated Carbon

The Chromgate Hydrocarbon Trap is designed to reduce hydrocarbon and organic vapour contamination from laboratory and analytical gas streams.

The trap utilizes Activated Carbon / Activated Charcoal as the adsorption medium. Its high surface area helps adsorb hydrocarbon contaminants and other compatible organic impurities that may interfere with analytical measurements or contribute to elevated detector background.

It is particularly useful in gas chromatography applications where clean carrier, make-up, or detector gas is important for maintaining reliable analytical performance.

Technical Specifications:-
Product Type: In-Line Hydrocarbon Trap
Filter Media: Activated Carbon / Activated Charcoal
Nominal Filter Length: Approx. 11″, end-to-end
Inlet and Outlet Connections: 1/8″ or 1/4″
Installation: In-Line
Function: Reduction of hydrocarbons and compatible organic vapour contaminants
Application: Analytical carrier gas, make-up gas, detector gas, and compatible laboratory gas lines
Gas Compatibility: Depending on gas service and application requirements
Configuration: Standalone or integrated into a Gas Purification & Control System

3. Oxygen Trap (Oxytrap) – Chemical Catalyst

The Chromgate Oxygen Trap is designed to reduce trace oxygen contamination from compatible high-purity gas streams used in analytical applications.

The trap contains approximately 100 cc of chemically treated catalyst media, selected to react with or capture residual oxygen present in the gas stream. Removal of trace oxygen is particularly important in sensitive analytical applications because oxygen contamination can adversely affect certain GC columns, detectors, and analytical performance.

Technical Specifications:-
Product Type: In-Line Oxygen Trap
Filter Media: Chemically Treated Catalyst
Catalyst Quantity: Approx. 100 cc
Nominal Filter Length: Approx. 10″, end-to-end
Inlet and Outlet Connections: 1/8″ or 1/4″
Installation: In-Line
Function: Reduction of trace oxygen from compatible gas streams
Application: High-purity carrier gas and analytical gas purification
Gas Compatibility: According to catalyst chemistry and specified gas service
Configuration: Suitable for standalone installation or integration into a Gas Purification & Control System

Note: Actual purification efficiency, contaminant-removal capacity, outlet purity, maximum operating pressure, flow capacity, service life, and gas compatibility depend on the filter media, gas composition, inlet contaminant level, operating pressure, flow rate, temperature, and application. These parameters should be specified according to the selected filter configuration and actual performance data.

Chromgate Instruments Private Limited is a leading manufacturer and supplier of state-of-the-art gas handling and control systems. Our expertise spans the design, engineering, supply, installation, and commissioning of turnkey gas distribution and monitoring solutions. We serve diverse laboratory environments, including pharmaceutical, chemical, petroleum, food, and pesticide industries, ensuring precise, safe, and reliable gas delivery tailored to critical research, testing, and production applications.

Supply & Installation of Gas Piping & Utility Project, Gas Detection System & Low Gas Alarm Panel System, Gas Cabinet & Gas Bank Shed, AAS & ICP Ducting & Exhaust , Gas Cylinder Automation, Gas Cabinet & Cylinder Shed and many more.

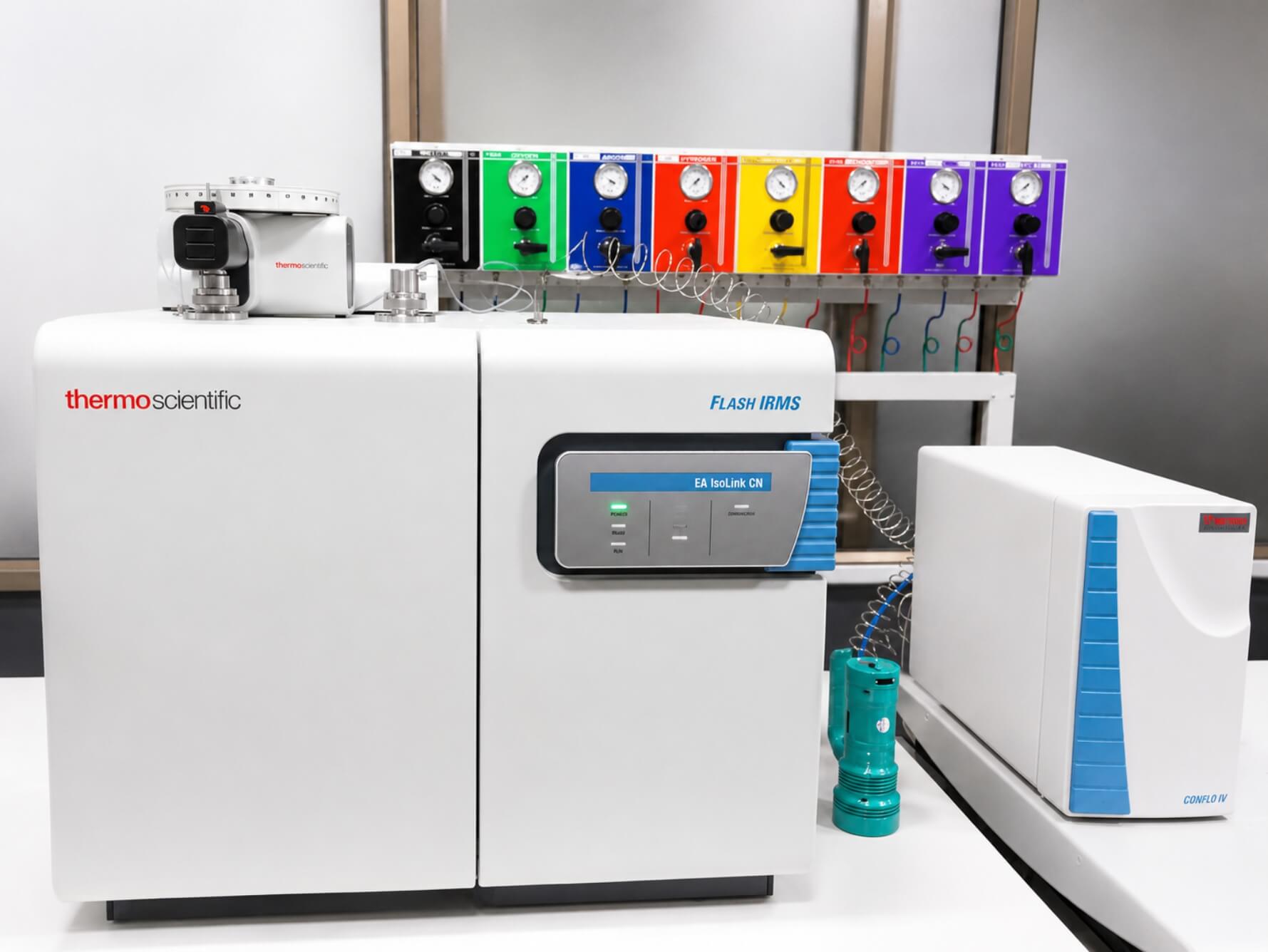

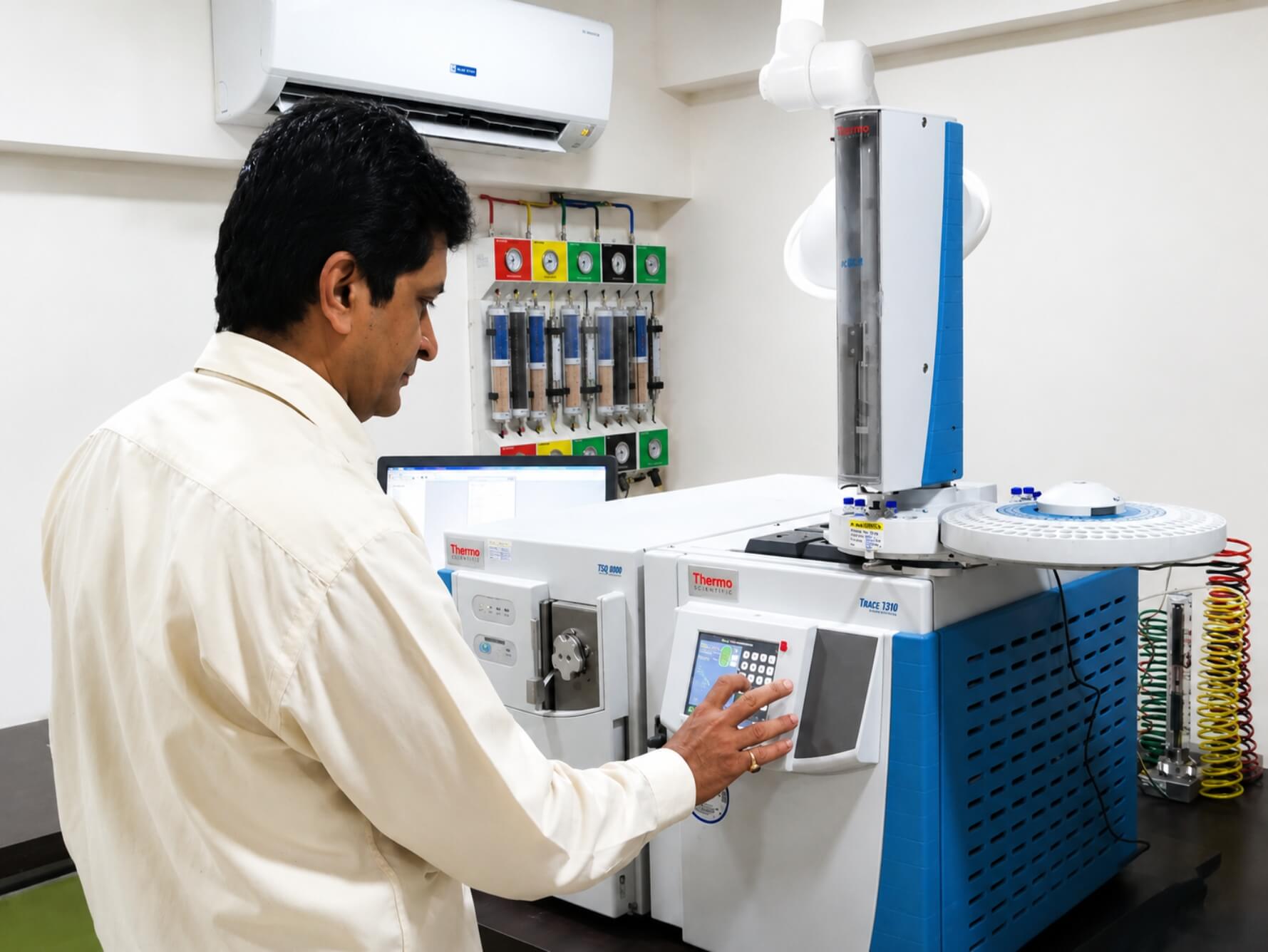

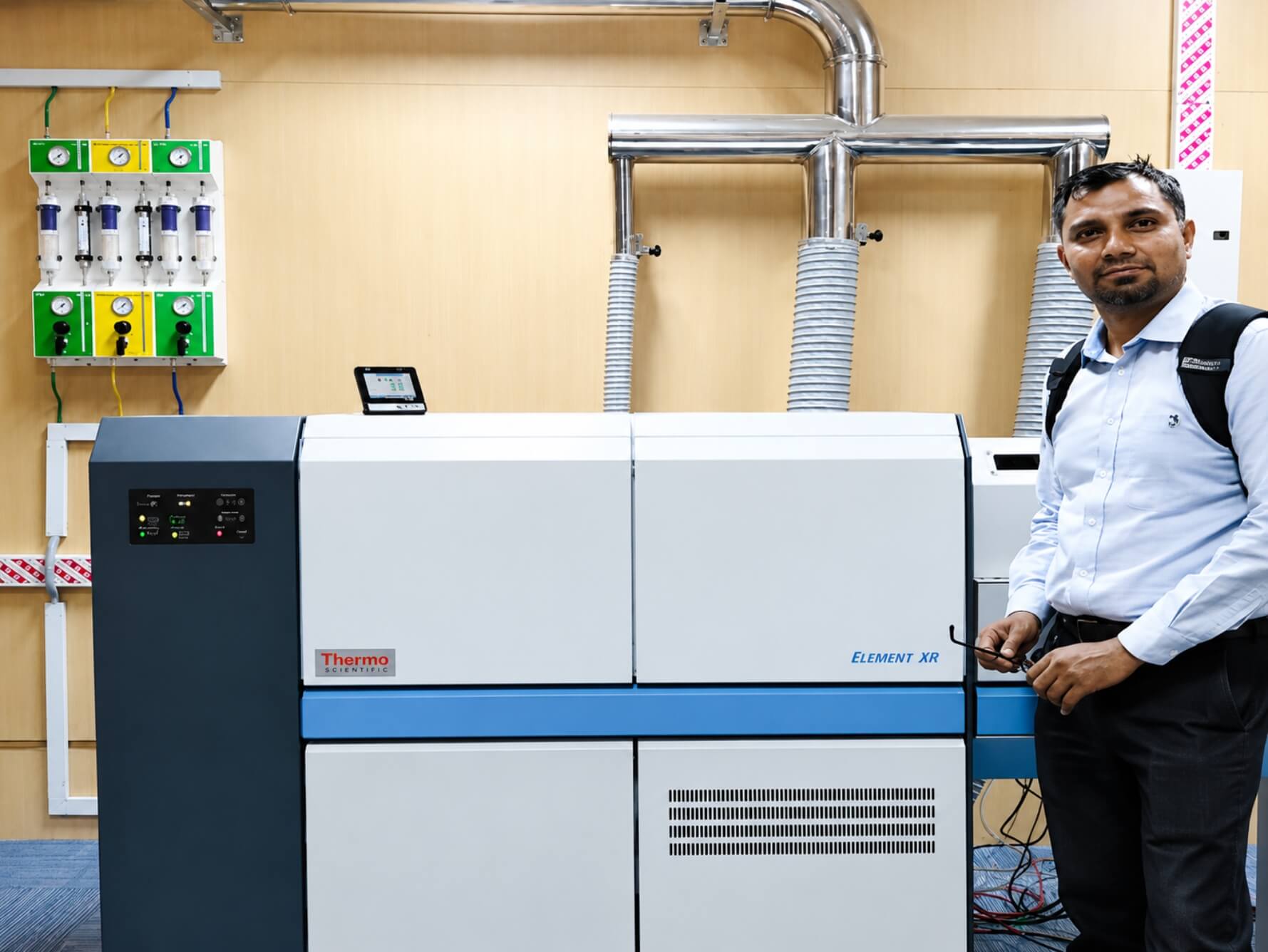

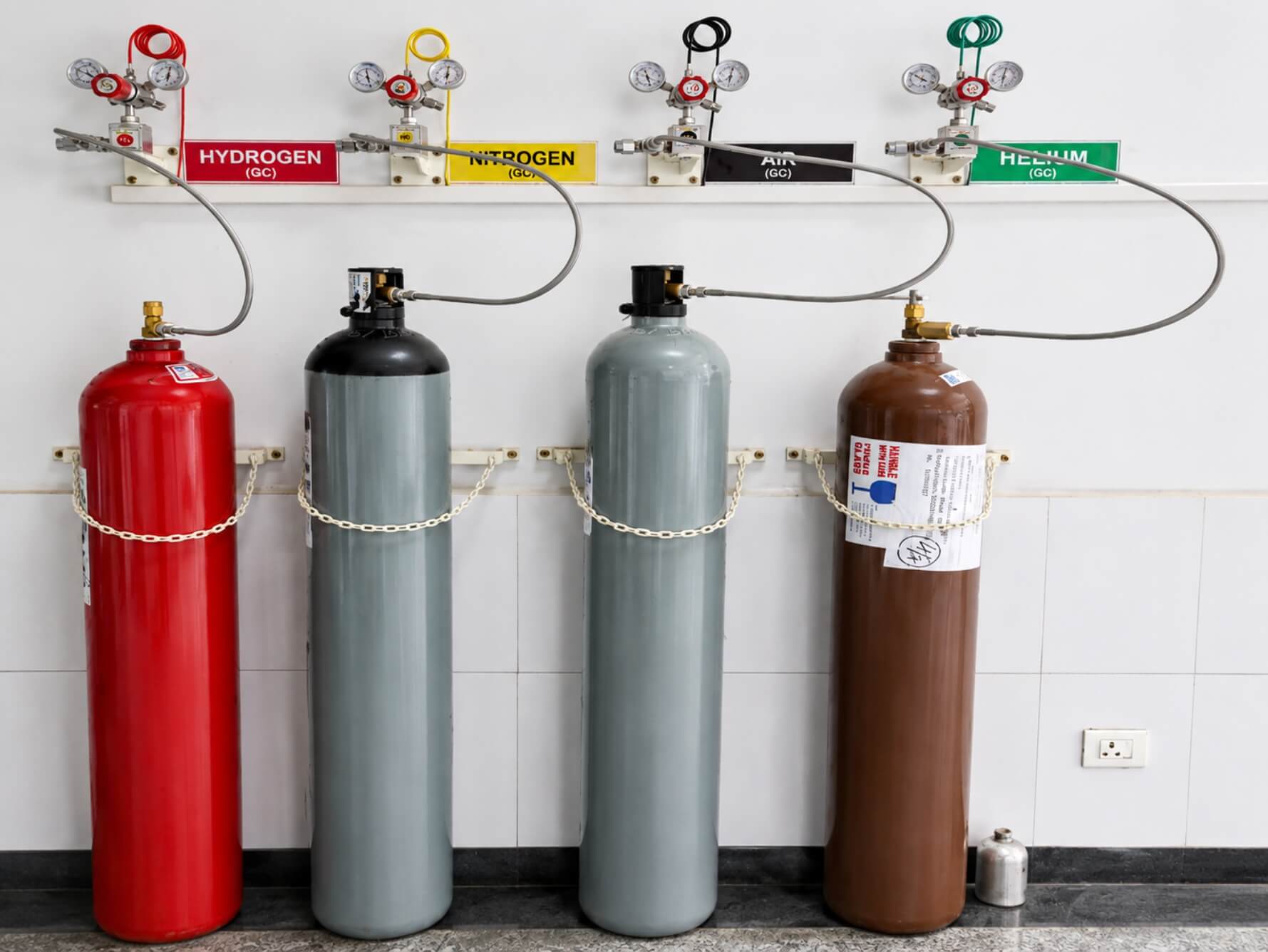

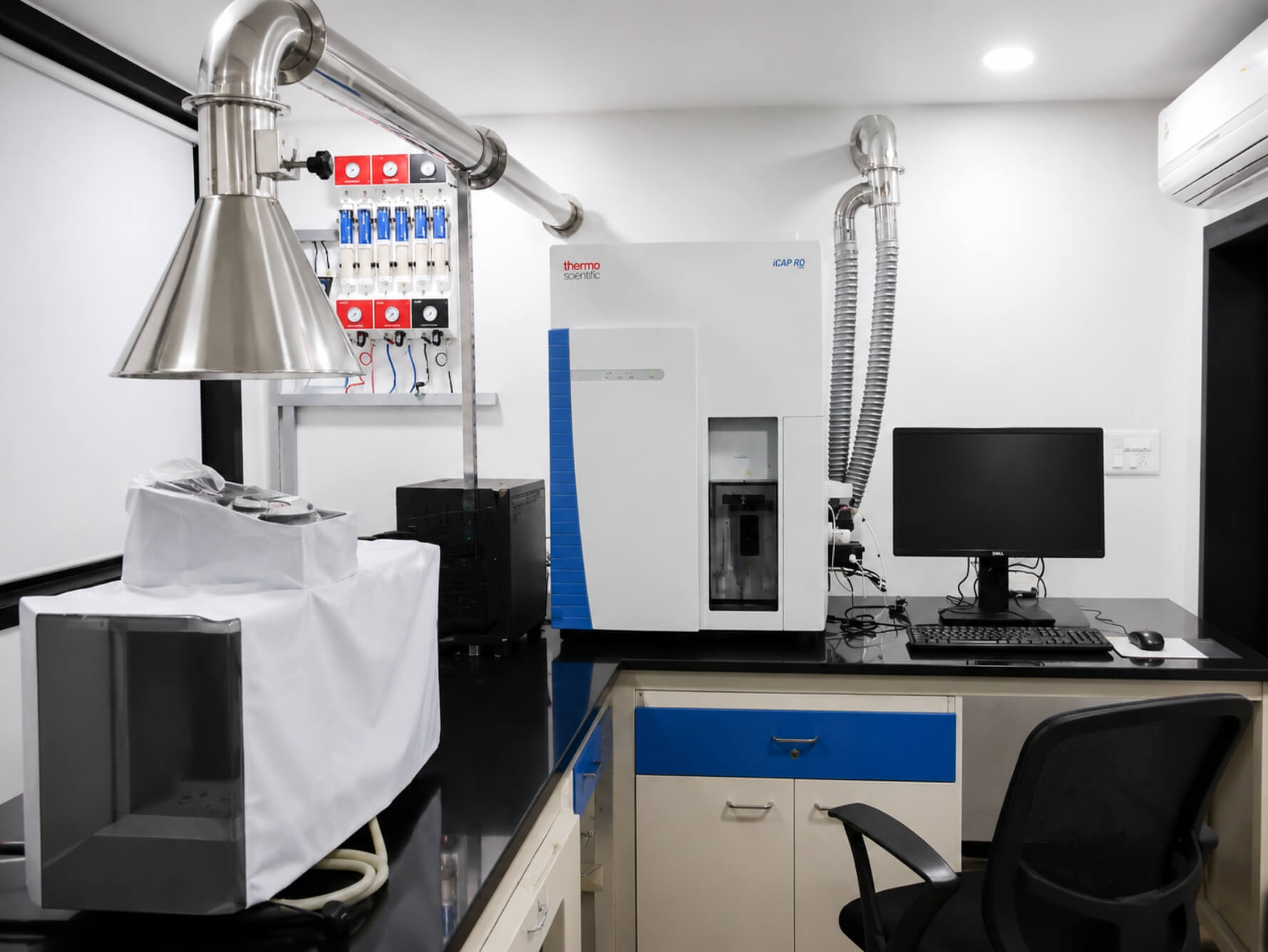

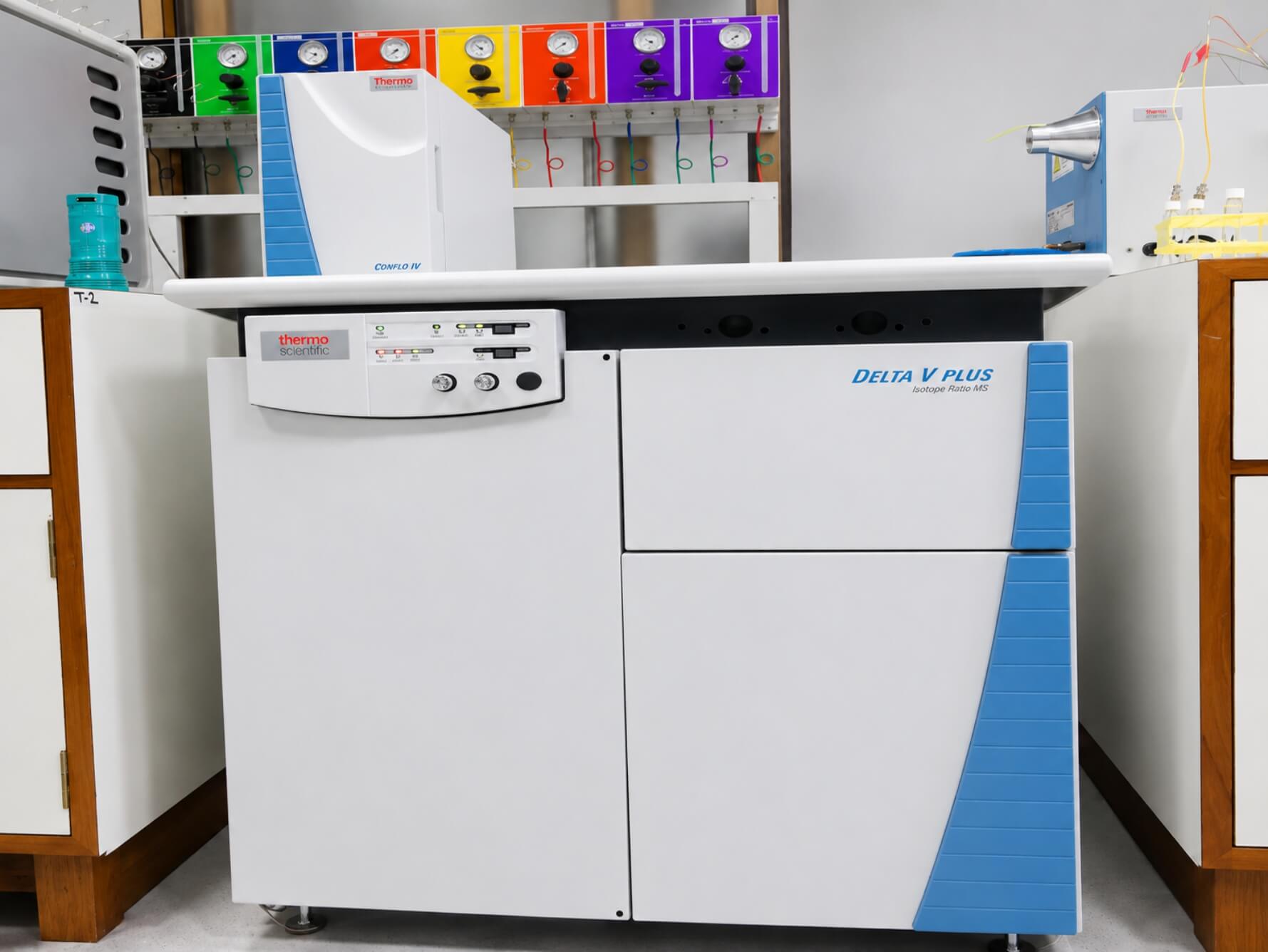

SITE INSTALLATIONS
