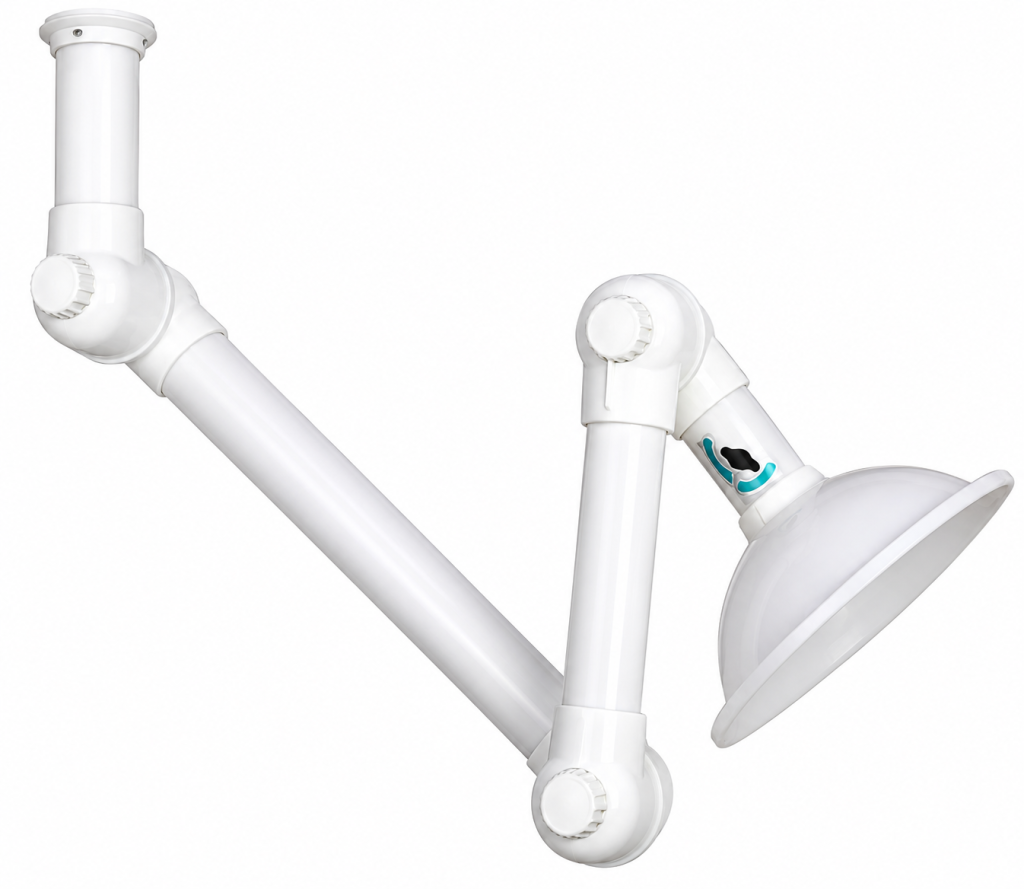

Laboratory Spot Extractor (Ceiling Mounted / Wall Mounted)
HSN Code: 84146000
The Chromgate Laboratory Spot Extractor is designed to capture and extract hazardous fumes, vapours, smoke, and airborne contaminants directly at the source, thereby enhancing laboratory safety and improving indoor air quality. Available in Ceiling-Mounted and Wall-Mounted configurations, the extractor is ideal for applications requiring localized exhaust ventilation in laboratories, pharmaceutical facilities, chemical industries, research centres, educational institutions, and production environments.
Standard Features & Technical Specifications:-
- Product Type: Laboratory Spot Extractor
- Mounting Options: Ceiling Mounted / Wall Mounted
- Material of Construction (MOC): High-grade chemical-resistant Polypropylene (PP)
- Exhaust Arm Diameter: 75 mm
- Hood Type: Non-transparent / transparent PP extraction dome
- Hood Diameter: 385 mm
- Arm Design: Three-joint articulated arm with 3-axis movement for maximum operating coverage and precise positioning.
- Flow Control: Integrated manual damper for convenient airflow regulation.
- Arm Movement: Smooth and flexible positioning with secure locking arrangement.
- Construction: Lightweight yet rigid design for long-term durability.
- Chemical Resistance: Excellent resistance to acids, alkalis, solvents, and laboratory chemicals.
- Surface Finish: Smooth, corrosion-resistant, and easy-to-clean finish.
- Installation: Suitable for ceiling or wall mounting with standard mounting accessories.
- Connection: Compatible with laboratory exhaust ducting systems.

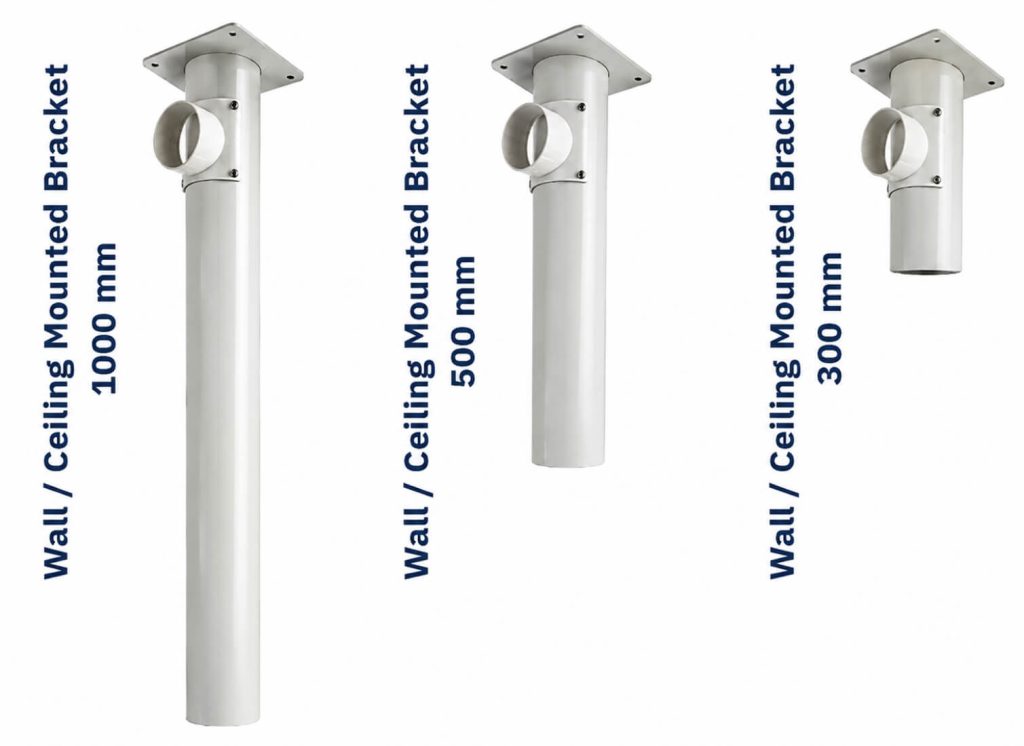

Aluminium Wall / Ceiling Mounting Bracket for Laboratory Spot Extractor
The Aluminium Wall / Ceiling Mounting Bracket is specially designed for the secure installation and support of laboratory spot extractors and articulated fume extraction arms. Manufactured from high-quality aluminium with a durable powder-coated finish, the bracket provides a lightweight, rigid, corrosion-resistant, and aesthetically pleasing mounting solution suitable for laboratory and industrial environments.
The bracket is available in wall-mounted and ceiling-mounted configurations and can be supplied in different sizes and lengths to suit the installation height, extractor position, workspace layout, and specific site requirements.
